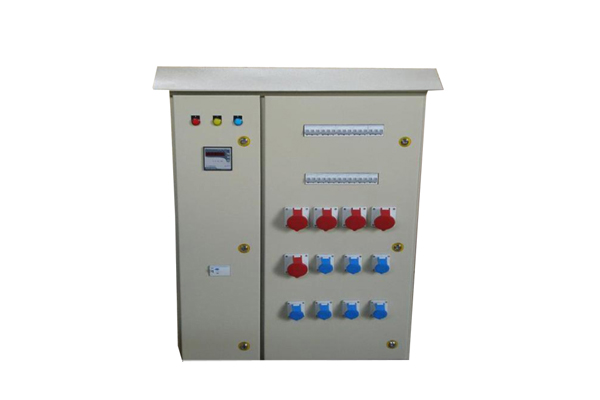

Industrial and multiphase plugs and sockets provide a connection to the electrical. Mains rated at higher voltages and currents than household plugs and sockets. They are generally used in polyphase systems, with high currents, or when. Protection from environmental hazards is required.

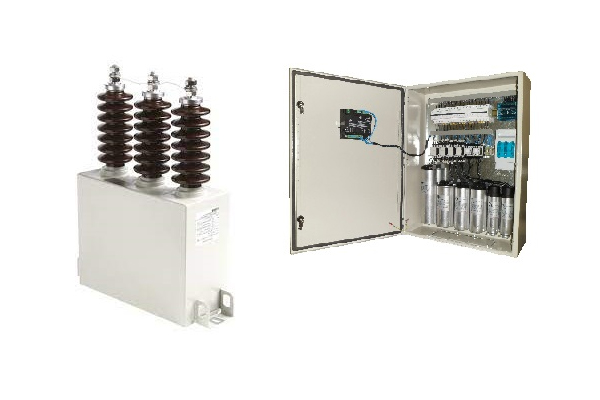

A capacitor bank is a group of capacitors connected together in a specific configuration, typically in parallel or in series. Capacitor banks are commonly used in electrical power systems to improve the power factor and to provide reactive power compensation.

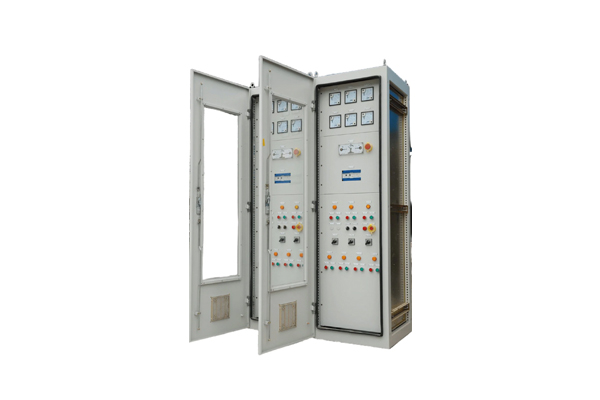

Auto Synchronizing panel The name itself describes its role when you link with Power Source. Means – To compare, match, adjust with two or more power magnitude levels. The demand of synchronizing panels comes into action where power continuity is at a priority level. In Conclusion, Synchronising panels is the most important part for critical production industries in LT Panels.

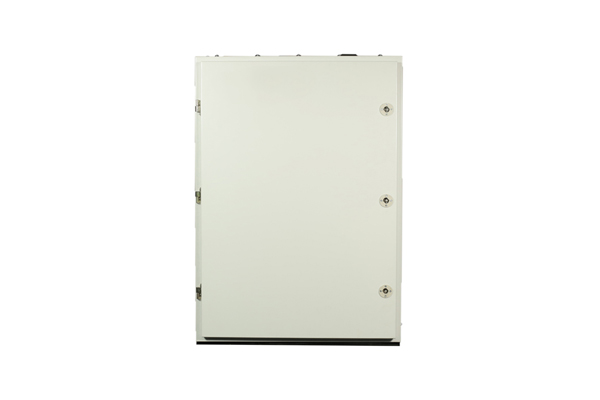

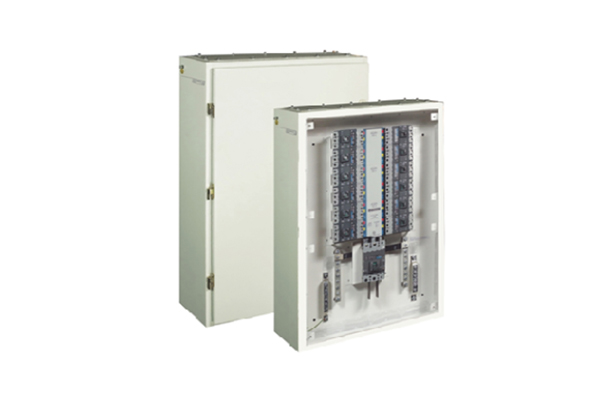

Sub main distribution boards are also referred to as MCCB panels. A typical SMDB is equipped with MCCBs as incomer and MCCBs as outgoings. MCCB incomer is connected to upstream Main Distribution Board whereas MCCB outgoings are connected to downstream loads. These MCCBs wall mount with user friendly arrangements.

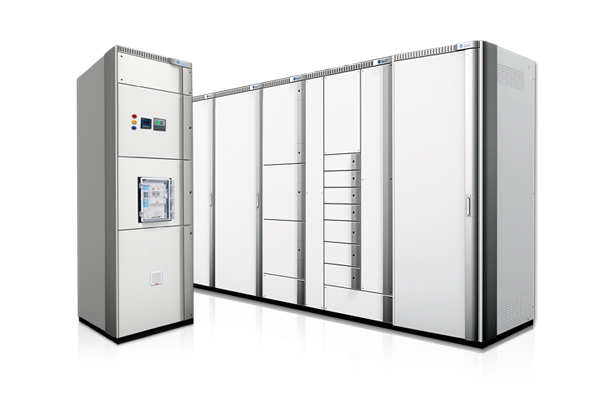

Main distribution boards are used to distribute and control the power supply in large buildings such as shopping malls, hospitals, universities, and hotels. The main distribution boards are generally installed after the main power source (eg. transformers or generators) and used to divide the power feed into subsidiary outgoing feeders.
Compatible and ASTA type tested in accordance with IEC 61439-1 & 2.

• Rated insulation voltage up to 1000V
• Main busbars up to 6300A
• Busbar short-circuit withstand capacity up to 100kA for 1 Sec / 65KA for 3 Sec
• Neutral busbars are rated up to 100% of the main busbar and Earth busbars are rated up to 100% of the Neutral busbar
• Tested for Internal Arc Fault as per IEC 61641 up to 100kA (Classified as PSC assembly providing PERSONAL and ASSEMBLY protection under arcing conditions)
• Seismically tested up to 0.75g = 8.0 Richter scale.
• Forms of internal separation from Form 1 to Form 4b
• Designed for Ambient temperature up to 50 °C
• Available for indoor & outdoor applications, up to IP55

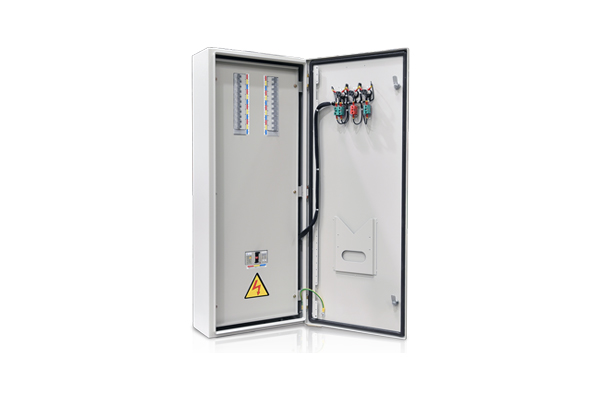

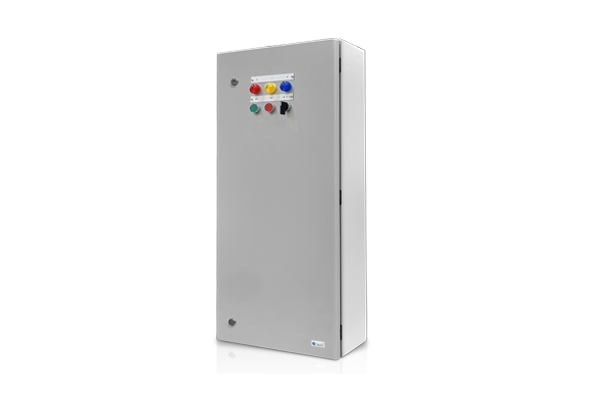

Final Distribution Boards are designed to distribute power safely and reliably in low-voltage electrical systems and ensure protection that is essential for electrical circuits and devices.

• Compatible and type tested in accordance with IEC 61439-1 & 3.
• Rated current Available up to 250 A.
• Fully insulated busbar system.
• High Busbar short circuit withstand tested for 25KA.
• Multi Outgoing feeders connections.
• Optional metering (Ammeter & Voltmeter) can be added separately with metering kit above the panel board.
• One solid piece Earth & Neutral Brass Busbar
• Available for indoor & Outdoor applications, up to IP66.
• Standard Color, RAL 7035 (other colors on request).

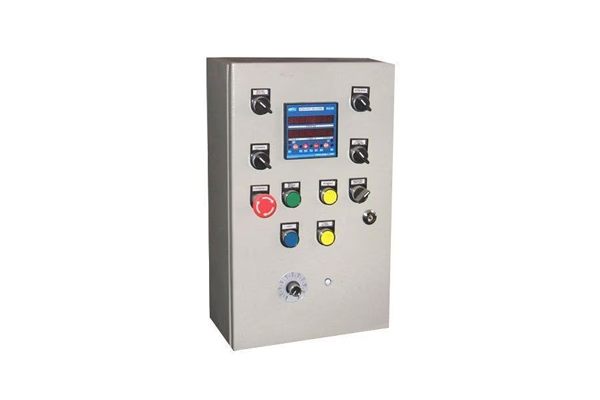

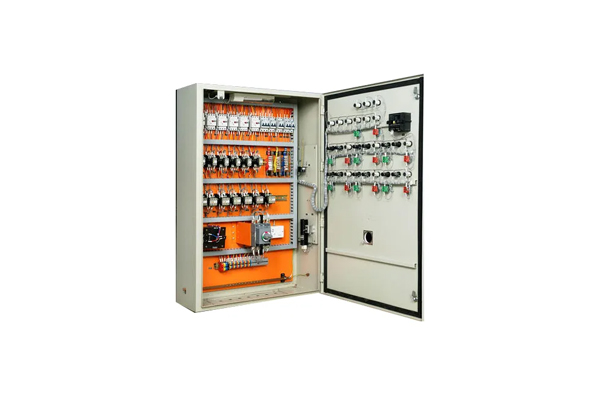

Control panel refers to the low-tension panel that is being manufactured and applied for controlling the distribution systems and power control of AC. This type of panel is mainly used in the indoor and outdoor substation, industrial enterprise, commercial or residential buildings that distribute power and. Further, this may also be used for controlling, introspecting, and protecting the circuit.
